CNC Milling.

2D and 3D shape cutting.

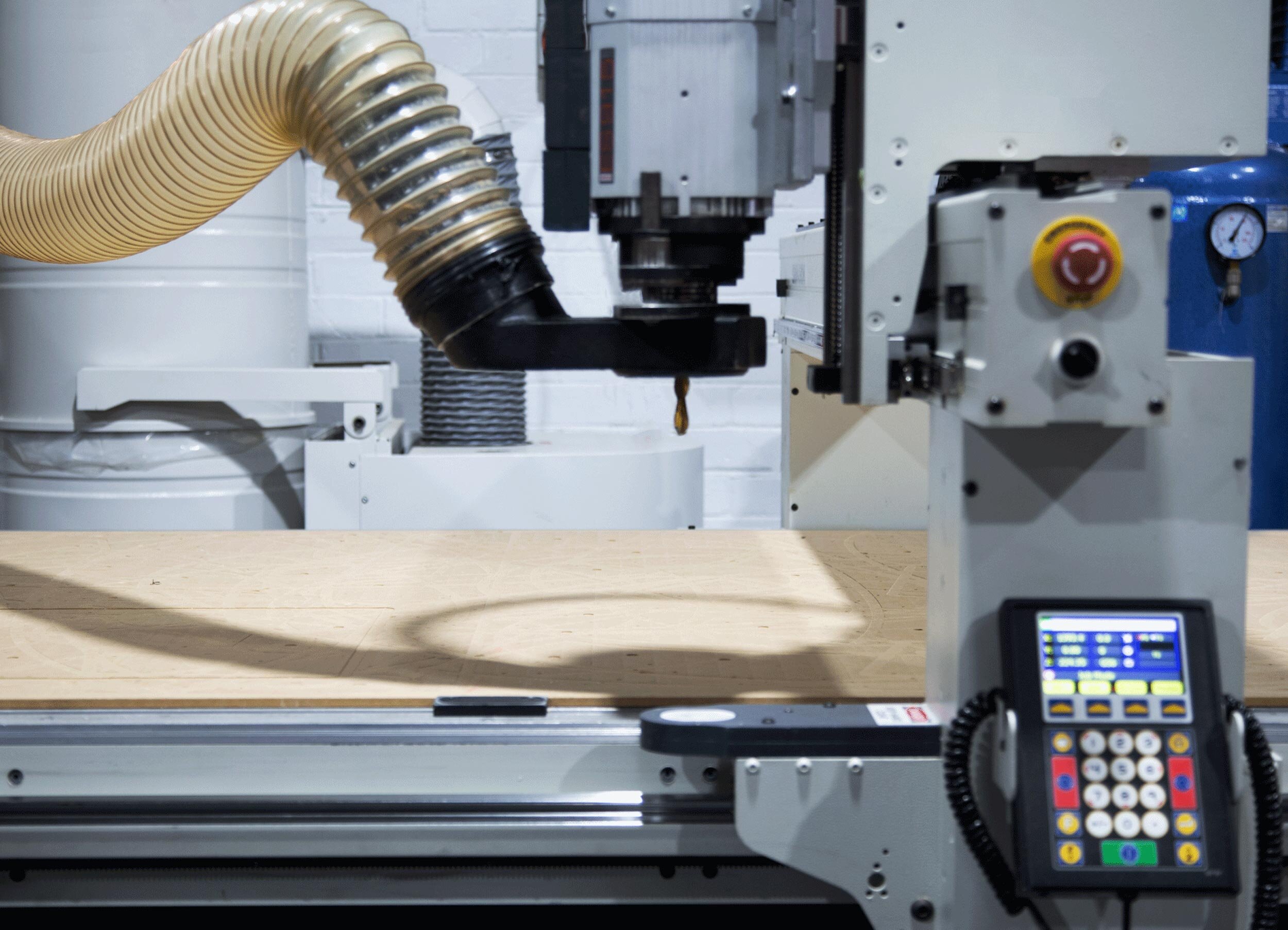

Our 3 axis CNC machine has a full standard sheet capacity and is able to cut a variety of materials from timber to plastics and aluminum. We have a large range of CNC tools and drills at hand, ready to cut various materials in any shape, accurately.

We utilise advanced CAM software to program the CNC to cut in two and three dimensional patterns. The CAM software also enables us to add useful helpers like ‘tabs’ and ‘dog bones’ to achieve tricky small parts and complex 3D parts.

Size of the machine bed.

Length (x): 2440 mm

Width (y): 1220 mm

Material thickness (z): 250 mm

Some commonly used materials.

Solid Timber.

Jelutong [70 x 300mm] , Rock Maple [50 x 150mm], Walnut [50 x 200mm], Rosewood [50 x 200mm], American Oak [50 x 200mm].

Plywood

Birch, Hoop pine, Form Ply

MDF and LDF

3 mm, 6 mm, 9 mm, 12 mm, 16 mm, 18 mm, 25 mm, 32 mm, 35mm, 39mm, 45mm

Plastics

Acrylic [1.5mm, 2mm, 3mm, 4.5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm]

Acetal, PVC.

Aluminum

Sheet and composite sheets.

Applied finishes.

We can sand cut materials and apply a variety of finishes, especially to solid timber and plywood. We prefer wax or oil finishes or any water based finishes.

The cost.

You will need to supply some files to get an accurate price, here’s a quick guide.

Full sheets, 2D cuts only - start at $150 + GST. Excluding materials, bulk rates vary.

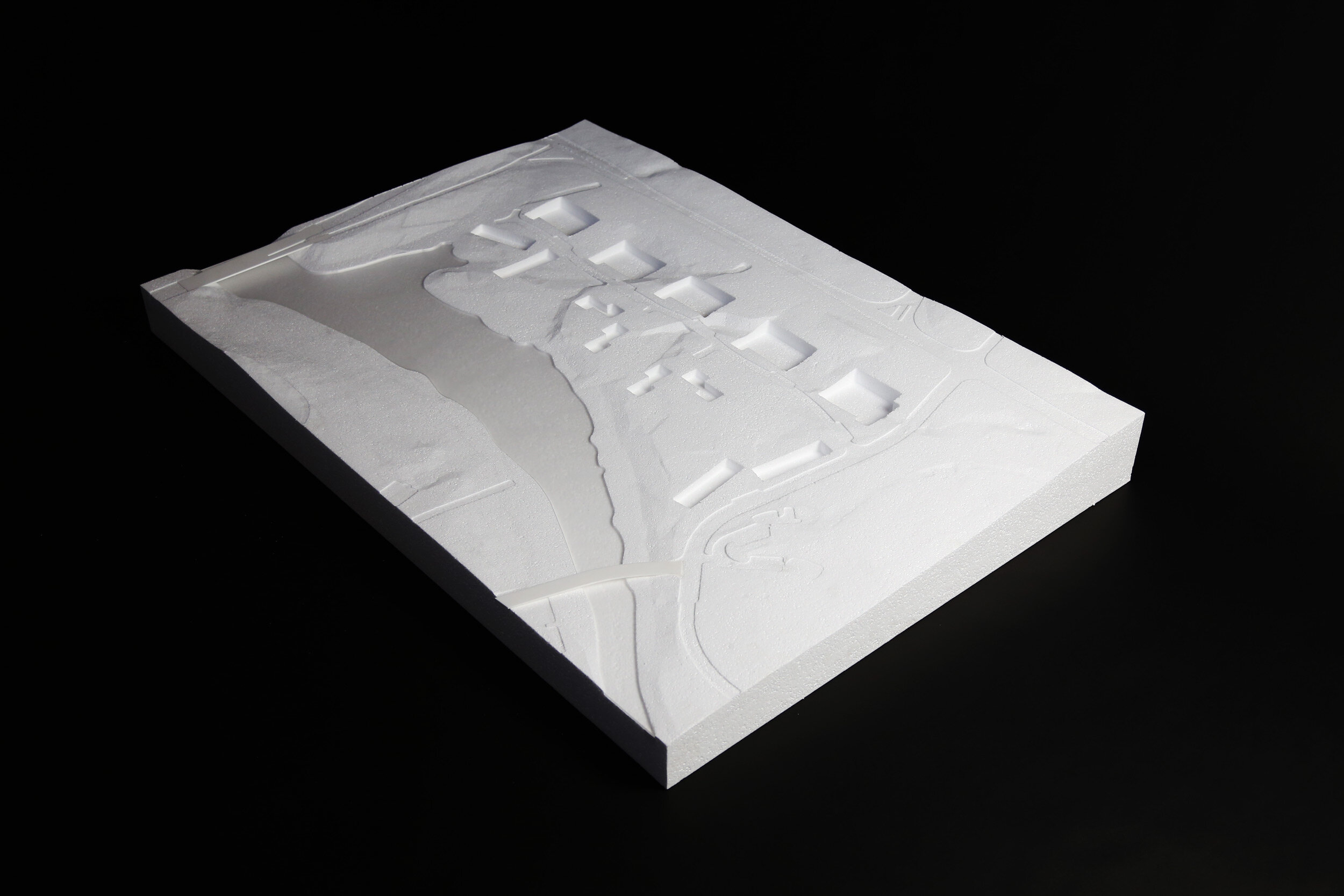

3D Milling of terrains or other 3D surfaces vary depending on level of detail, pockets etc. starting at $300 + GST, excluding materials.

Preferred file types.

Rhino3D(.3dm), 3D or 2D Autocad(.dwg and .dxf), Adobe Illustrator(.ai)

We can also usually convert just about any file type or work from ideas or sketches to produce the required files.
